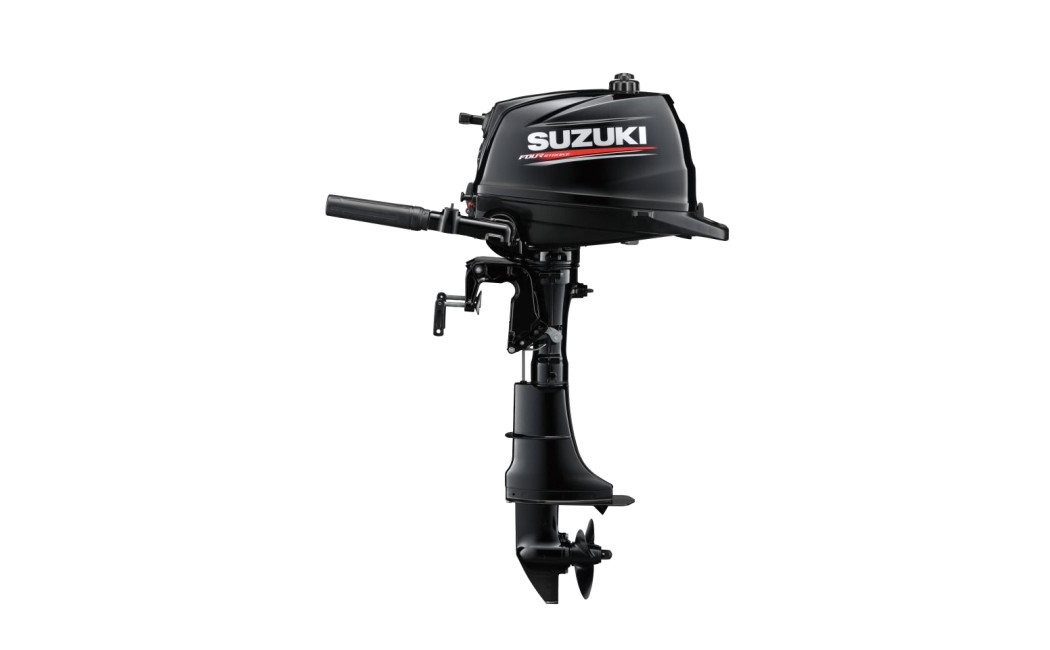

Boat motor four-stroke SUZUKI DF 5 AS
Specification
bore / stroke (mm) 60,4 х 48,0 built-in fuel tank (l) yes (1.5) cold starting system mechanical country thailand crankcase capacity (l) 0.700 dry weight (kg) 23,5 engine lifting mechanism manual engine start manual engine's type 4x stroke exhaust system over the screw fuel consumption (l / h) ≈0.83 @ 5000 rpm fuel system type carburetor fuel tank (l) built-in, 1.5 gas distribution system ohv gear ratio 1223 (1,92) generator 12v 5a (optional) ignition system digital capacitor ignition system (cdi) Lubrication system crankcase oil maximum working range (rpm) 4500-5500 motor leg length (mm) 381 number of cylinders 1 oil volume in the gearbox (l) 0,190 outboard motor swing angle 90 ° left and right power (hp) 5 propeller screw yes 7½ × 6½ recommended oil type sae 10w-40 recommended spark plug steering type ручное\n tilt and pitch of the outboard motor -8° —63° (71°) transmission fnr working volume (cm³) 138,0
bore / stroke (mm)
60,4 х 48,0
built-in fuel tank (l)
yes (1.5)
cold starting system
mechanical
country
thailand
crankcase capacity (l)
0.700
dry weight (kg)
23,5
engine lifting mechanism
manual
engine start
manual
engine's type
4x stroke
exhaust system
over the screw
fuel consumption (l / h)
≈0.83 @ 5000 rpm
fuel system type
carburetor
fuel tank (l)
built-in, 1.5
gas distribution system
ohv
gear ratio
1223 (1,92)
generator
12v 5a (optional)
ignition system
digital capacitor ignition system (cdi)
Lubrication system
crankcase oil
maximum working range (rpm)
4500-5500
motor leg length (mm)
381
number of cylinders
1
oil volume in the gearbox (l)
0,190
outboard motor swing angle
90 ° left and right
power (hp)
5
propeller screw
yes 7½ × 6½
recommended oil type
sae 10w-40
recommended spark plug
steering type
ручное\n
tilt and pitch of the outboard motor
-8° —63° (71°)
transmission
fnr
working volume (cm³)
138,0
