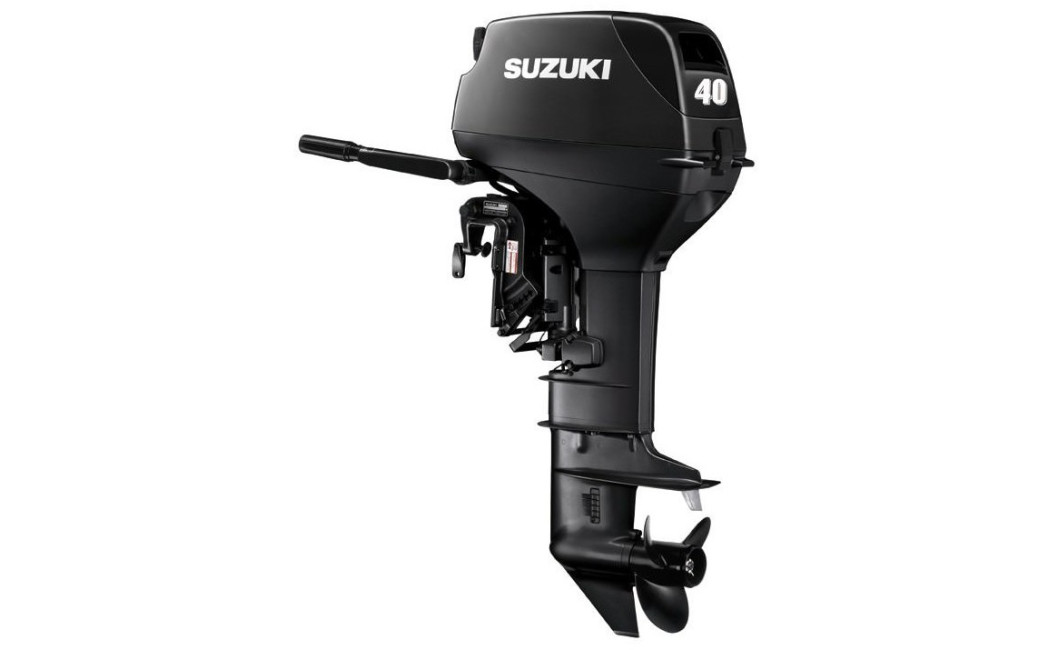

Motor boat two-stroke SUZUKI DT 40 WL
Specification
adjustment angle 4 °, 8 °, 12 °, 16 °, 20 ° bore / stroke (mm) 79,0 х 71,0 check engine stop да country thailand dry weight (kg) 74,0 engine lifting mechanism manual engine start manual engine's type 2x stroke external fuel tank (l) yes (25) fuel consumption ≈9,24 fuel hose with bulb да fuel system type 1 carburetor fuel-oil ratio 501 gear ratio 1123 (2,09) generator 6a 80w ignition system suzuki pei instruments да Lubrication system premixing maximum working range (rpm) 5000-5600 motor leg length (mm) 508 number of cylinders 2 oil volume in the gearbox (l) 0,610 power (hp) 40 propeller screw yes 3 x 11½x13 recommended oil type tc-w3 recommended spark plug br7hs-10 screw range (optional) yes 9-15 steering type румпель\n transmission fnr user's manual да working volume (cc) 696,0
adjustment angle
4 °, 8 °, 12 °, 16 °, 20 °
bore / stroke (mm)
79,0 х 71,0
check engine stop
да
country
thailand
dry weight (kg)
74,0
engine lifting mechanism
manual
engine start
manual
engine's type
2x stroke
external fuel tank (l)
yes (25)
fuel consumption
≈9,24
fuel hose with bulb
да
fuel system type
1 carburetor
fuel-oil ratio
501
gear ratio
1123 (2,09)
generator
6a 80w
ignition system
suzuki pei
instruments
да
Lubrication system
premixing
maximum working range (rpm)
5000-5600
motor leg length (mm)
508
number of cylinders
2
oil volume in the gearbox (l)
0,610
power (hp)
40
propeller screw
yes 3 x 11½x13
recommended oil type
tc-w3
recommended spark plug
br7hs-10
screw range (optional)
yes 9-15
steering type
румпель\n
transmission
fnr
user's manual
да
working volume (cc)
696,0
