Echo sounder Practician 7 BWF Universal
Specification
Display backlight: Yes Display Resolution: 64 х 128 px, 5х3 cm Number of beams: 1 beam (40º) Number of colors: 2 Producing country: Russia Receiver / Antenna Type: built-in Wi-Fi module Supply voltage : 1.5V Depth: from 0.5 to 50 m Category: Echo sounders Manufacturer: Practitioner Dimensions, cm: 107x70x28 Model: Echo sounder Practician 7 BWF Universal Weight, g: 100 Temperature Range : ºС -20 +60 Length of cable : 2m
Description
Long-awaited 3 & nbsp; sounder 1: & nbsp; "Practitioner 7 BWF Universal" now with Wi-Fi connection! Designed to detect promising places for fishing, searching for fish and exploring the water column in summer and winter.
NEW FEATURES! & Nbsp; & nbsp;

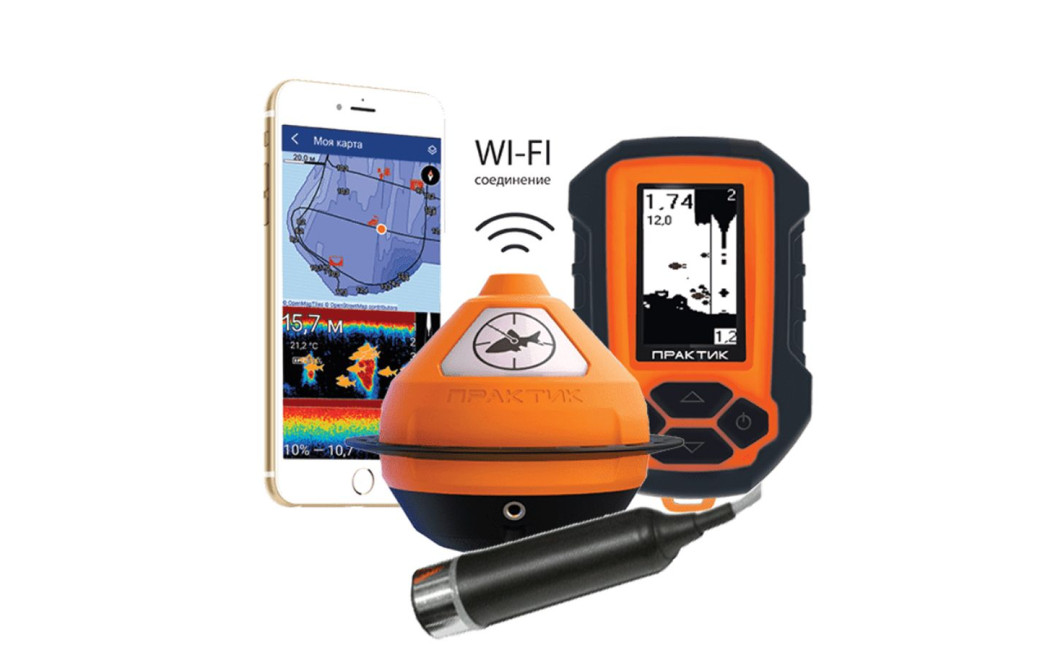

Now & nbsp; Block 7 BWF can be connected to a smartphone / tablet. & Nbsp; Thus, Block 7 BWF will act as a transmitter of information (link) from a wired sensor to a smartphone / tablet. This function allows using a wired 7 BWF sensor to scan a body of water and display information on a color screen of a mobile device, as well as record depth maps, mark points of interest, etc.) & nbsp;
Wireless transducer" The beacon "& nbsp; broadcasts information to & nbsp; block" 7 BWF "or a smartphone / tablet via a WI-FI connection.
When using a smartphone, you must first install the corresponding free software on it - the mobile application" Sounders Practice 7 "for Android or IOS .
The wired sensor is used in connection with the 7 BWF unit. Powered by a battery built into the unit.
Sonar advantages:
-
Ideal for summer and & nbsp; winter fishing (casting, trolling, & nbsp; holes) in all modifications.
-
Unique sensitivity. He even sees a jig.
-
Stable Wi-Fi connection with "Lighthouse" in any weather. & nbsp; Connection range - up to 80 m.
-
Depth range - 0.5 - 50 m
-
Light indication of Lighthouse operating modes. & nbsp; Convenient for night fishing.
-
Automatically turn on the "Beacon" when & nbsp; comes into contact with water.
- < p style = "margin-bottom: 10px;"> Special ECO-mode of operation. Doesn't scare fish away.
-
Unique stabilizer “ Beacon "for accurate & nbsp; display of data when stretching on waves.
-
Display fish. Determining the fish size and depth
-
Exact depth display , terrain and & nbsp; bottom density
-
Cartography: writing maps depths, saving & nbsp; points of interest, building routes, & nbsp; editing recorded files.
- < li style = "list-style: disc; margin-left: 18px;"> pond depth;
- relief & nbsp; and bottom structure;
- ground density;
- there are fish in the proposed fishing spot;
- presence of other objects in the reservoir (driftwood, algae, etc.)
Additional function when the echo sounder is working with a smartphone / tablet - & nbsp; CARTOGRAPHY allowing
- write depth maps;
- supplement and clarify already recorded maps with new tracks (layering maps);
- adjust the water level when layering the map;
- mark points of interest on the map while recording and viewing the map;
- build routes to the marked points;
- Send maps, tracks and markers to friends.

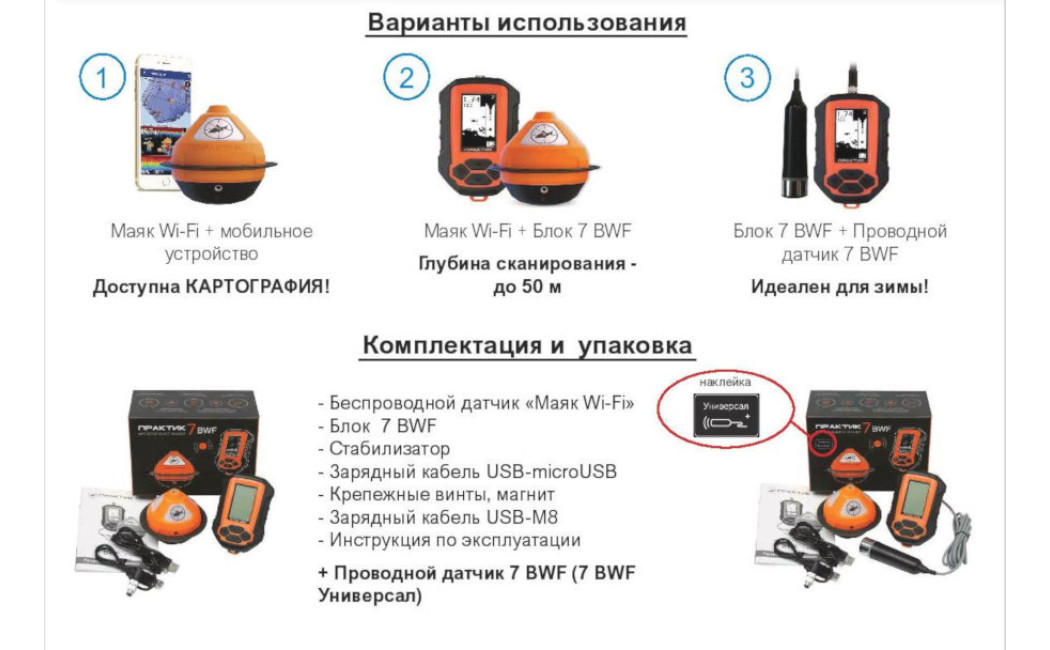

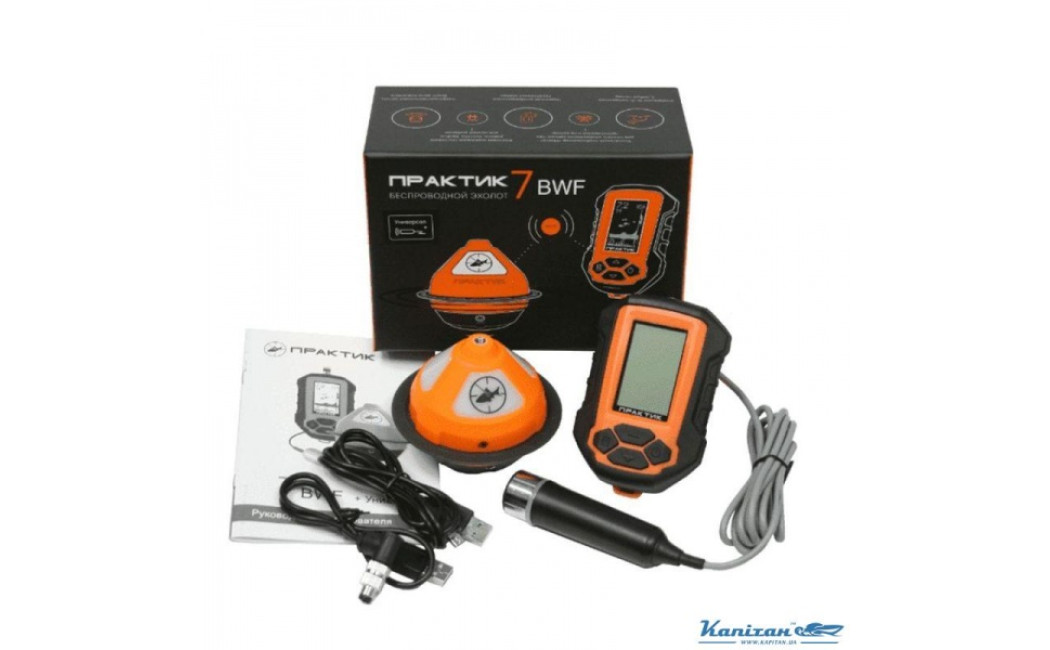

Options & nbsp; 7 BWF Universal:
- Wireless Beacon Sensor & nbsp;
- Block & nbsp; 7 BWF
- 7 BWF Wire Gauge
- Stabilizer
- USB-microUSB charging cable
- Mounting screws, magnet
- USB-M8 charging cable
- Operating Instructions
