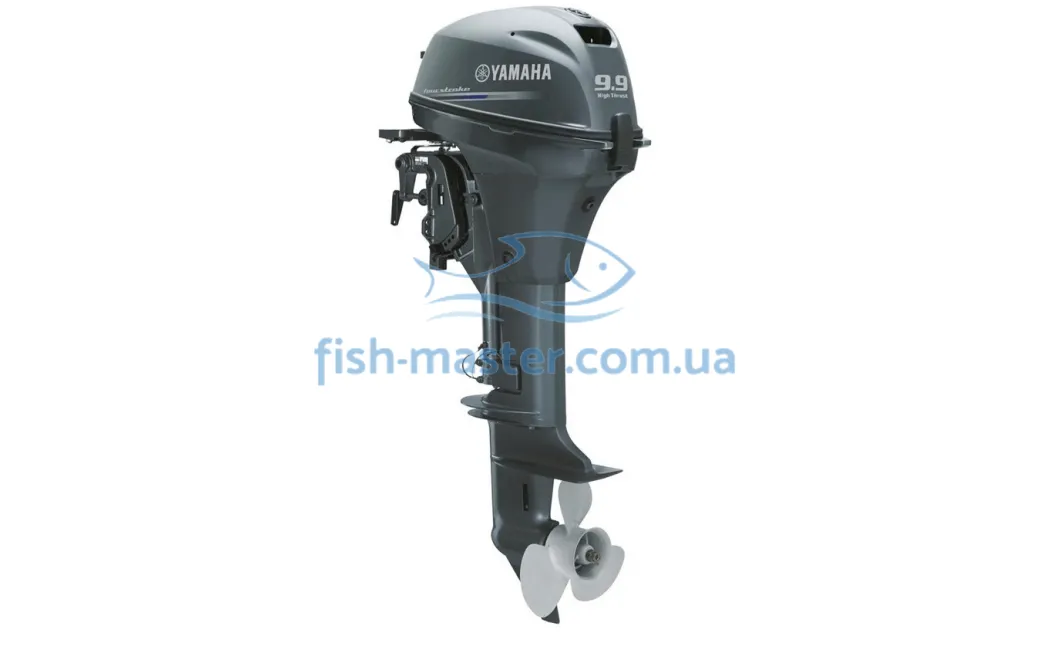

Motor boat four-stroke Yamaha FT9.9LEРL
Specification
Category: Motors Manufacturer: Yamaha Producing country: Japan Weight, kg: 49 A type: four-stroke Model: FТ9.9LEРL Engine leg length, mm: 557 Number of cylinders: 2 / in-line Working volume, cm3: 212 Diameter stroke. piston, mm: 56 x 43 Compression ratio: 9.4 Maximum working range, rpm: 5000~6000 Idling, rpm: 1050±50 Fuel consumption, l / h: 3.9 # 5500 rpm Fuel injection system: Carburetor (1) Cooling system: Water cooled with thermostat Lubrication system: Wet sump Engine power, HP: 9.9 Recommended engine oil: Yamalube 4S Ignition system: Capacitive CDI microcomputer Spark plug: BR6HS-10 Crankcase capacity, l: 0.800 Exhaust system: through the propeller Gas distribution system: SOHC Generator: 12B-6A Gear ratio: 2.92 (38/13) Transfers: F-N-R Outboard Motor Swing Angle: 38 Outboard motor tilt angle: wide-range trimming system Guarantee, personal use: 3 years Engine lifting mechanism: Electro-hydraulic (trim) Outboard motor pitch: 71 Warranty, commercial use: 6 months Starting the engine: Electric Steering type: remote External fuel tank, l: 12 Rowing wing, propeller pitch: 7
Category:
Motors
Manufacturer:
Yamaha
Producing country:
Japan
Weight, kg:
49
A type:
four-stroke
Model:
FТ9.9LEРL
Engine leg length, mm:
557
Number of cylinders:
2 / in-line
Working volume, cm3:
212
Diameter stroke. piston, mm:
56 x 43
Compression ratio:
9.4
Maximum working range, rpm:
5000~6000
Idling, rpm:
1050±50
Fuel consumption, l / h:
3.9 # 5500 rpm
Fuel injection system:
Carburetor (1)
Cooling system:
Water cooled with thermostat
Lubrication system:
Wet sump
Engine power, HP:
9.9
Recommended engine oil:
Yamalube 4S
Ignition system:
Capacitive CDI microcomputer
Spark plug:
BR6HS-10
Crankcase capacity, l:
0.800
Exhaust system:
through the propeller
Gas distribution system:
SOHC
Generator:
12B-6A
Gear ratio:
2.92 (38/13)
Transfers:
F-N-R
Outboard Motor Swing Angle:
38
Outboard motor tilt angle:
wide-range trimming system
Guarantee, personal use:
3 years
Engine lifting mechanism:
Electro-hydraulic (trim)
Outboard motor pitch:
71
Warranty, commercial use:
6 months
Starting the engine:
Electric
Steering type:
remote
External fuel tank, l:
12
Rowing wing, propeller pitch:
7
